Electronic universal testing machine

It is mainly used to test the mechanical properties of metal, nonmetal and products, such as tensile, compression, bending, shearing, tearing and peeling. It can realize the combined command control of stress, strain and speed. According to GB, JIS, ASTM, DIN and other standards, the maximum test force value, breaking force value, yield strength, upper and lower yield points, tensile strength, various elongation stress, various elongation, compressive strength, elastic modulus and other parameters can be automatically calculated, and the test report curve can be printed at any time.

We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.

Please provide the test standard you need to our company, our company will help you customize the test machine that meets the test standard you need.

Send email to us

Product Detail

PARAMETER

Product Tags

APPLICATION AREA

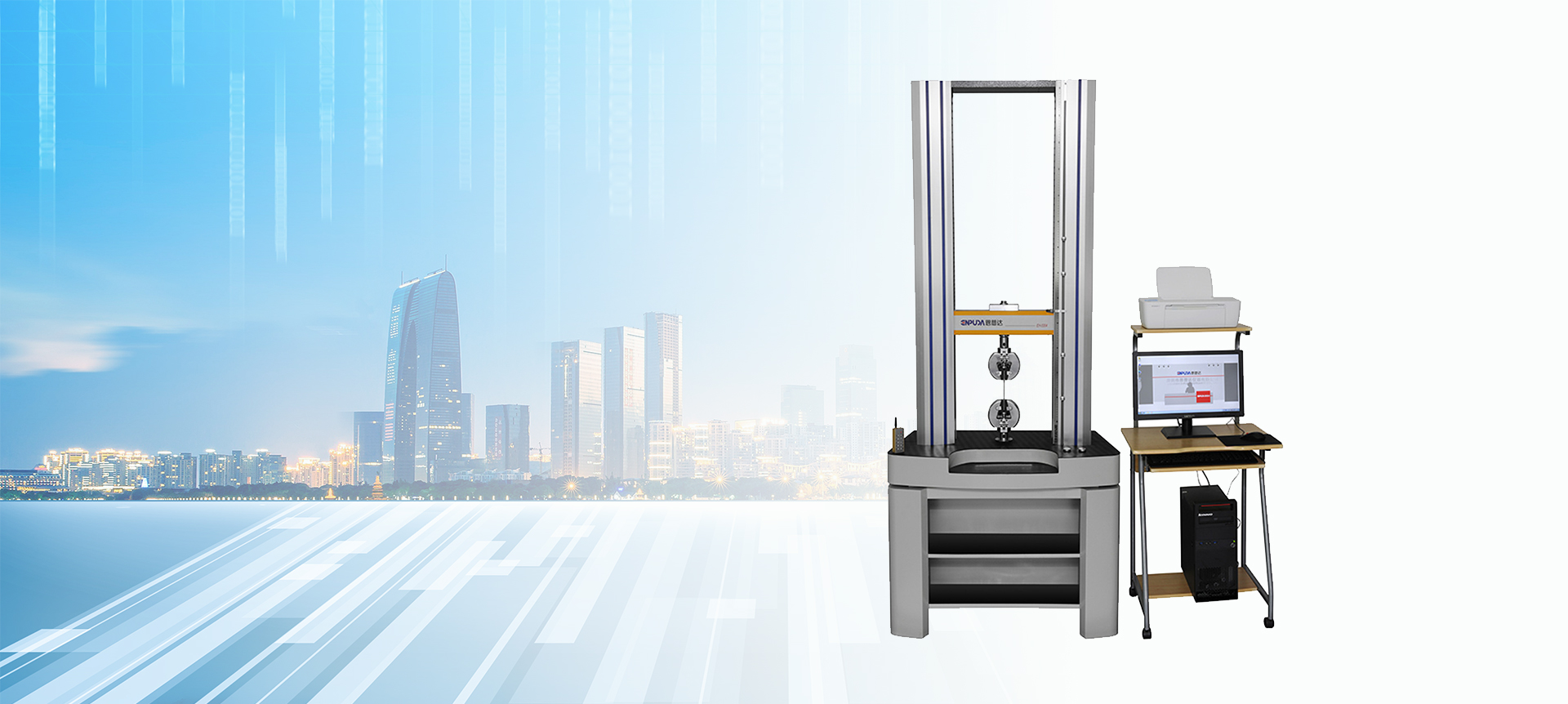

The computer-controlled electronic universal testing machine is mainly used to test the mechanical properties of metal, non-metal, composite materials and products in tension, compression, bending, shearing, tearing, and peeling.

Enpuda microcomputer-controlled electronic universal testing machine is flexible and convenient to operate, using wireless remote control for operation.

The Panasonic all-digital AC servo controller is used to control the high-precision, high-response frequency Panasonic AC servo motor, which drives the arc toothed synchronous belt deceleration system, and the synchronous toothed belt drives the screw to rotate and load to ensure the high efficiency of the transmission system. Low noise, stable transmission, high transmission accuracy, long working life, and guaranteed speed accuracy within ±0.5%.

Universal testing machines are widely used in rail transit, aerospace, ship and ocean engineering, rubber and plastics, automotive engineering, petrochemicals, concrete bricks, leather textiles, ceramic building materials and other industries.

The electronic universal testing machine is a commonly used testing equipment for enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.

Customized service / Test standard

We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.

Please provide the test standard you need to our company, our company will help you customize the test machine that meets the test standard you need

Testing standard

Performance features / advantages

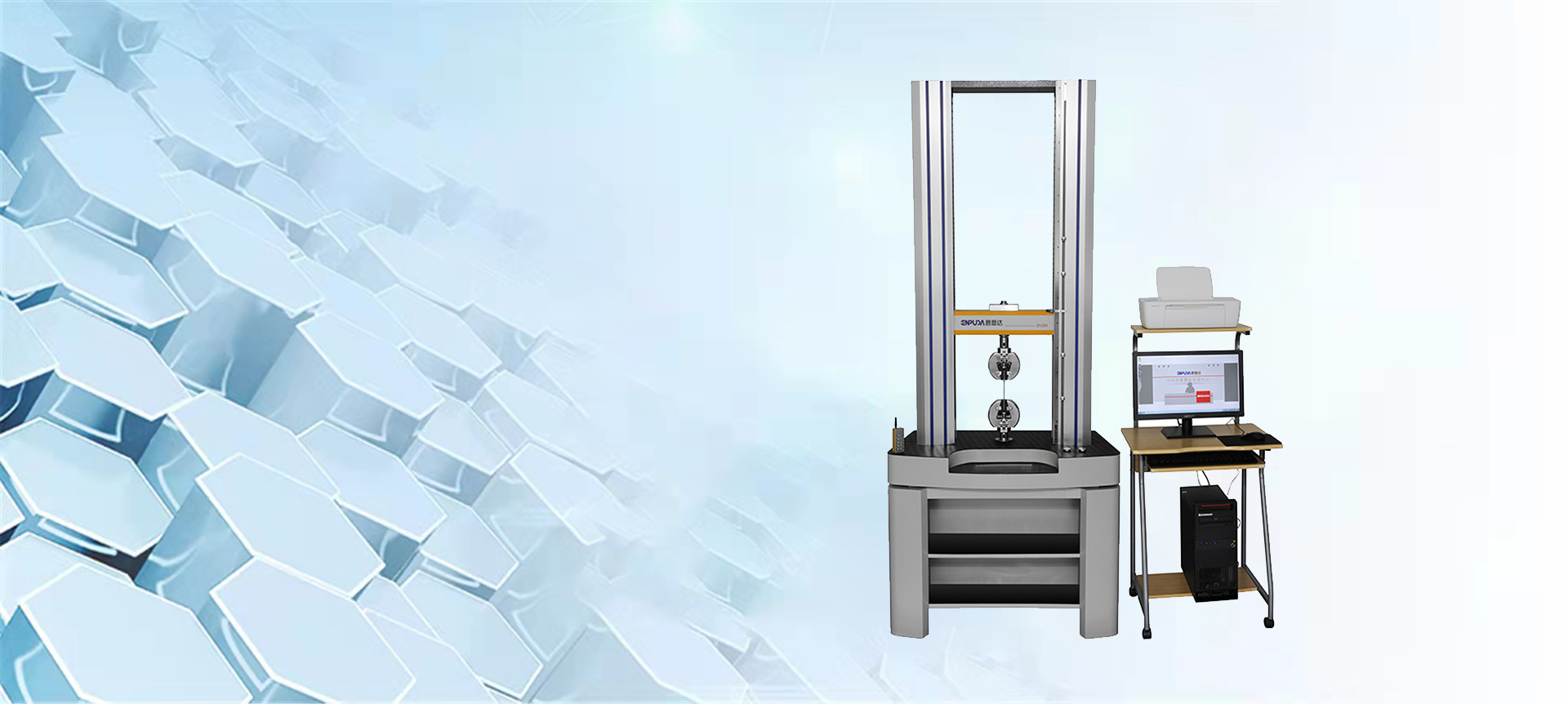

Electronic Universal Testing Machine (2)

1. Exquisite and elegant design: our company has always attached great importance to the appearance of products and developed many products comparable to foreign models. Some of the testing machines have been protected by national appearance patents;

2. Arc tooth synchronous belt deceleration system: it has the advantages of high efficiency, long life, low noise and maintenance free;

3. High precision ball screw loading: stable loading, long service life, good long-term stability and energy saving;

4. It adopts the new generation DSC chip system newly developed by the company: it is the most advanced controller with the highest integration degree and the highest control speed in China;

5. User operation interface: simple and reliable human-computer interaction interface and data processing interface to complete different experimental requirements selected by users;

6. Open data structure: both result parameters and process data can be called randomly by users, which is very convenient for scientific research and teaching;

7. User self editing scheme and report function: it can edit special scheme according to all standards at home and abroad, which is convenient for real-time calling; data can be imported into EXCEL form to facilitate user's post-processing;

8. A variety of protection measures: such as electronic limit protection, over-current, over-voltage and other power links of electrical protection, software overload, over displacement protection, mechanical mandatory safety limit protection, etc.

Test Standard

1. It is manufactured according to GB / t2611-2007 general technical conditions for testing machines and GB / T 16491-2008 electronic universal testing machines;

2. Verification and acceptance shall be carried out according to GB / t12160-2002 "provisions for extensometers for uniaxial test" and GB / t16825-2008 "inspection of tensile testing machines";
3. It is applicable to GB, JIS, ASTM, DIN and other standards.

Key Parts

1. Electronic universal testing machine remote control

2. High-precision ball screw, high precision, stable operation and long service life

3. Fixture

4. High-precision load sensor, American Transcell brand

5. Using Japanese Panasonic servo motor, stable and durable performance, high precision

Previous: Electronic dynamic testing machine

Next: High-quality electro-hydraulic servo 6-DOF motion platform for car driving simulatorseismic simulator, etc.

Model of testing machine	EH-5104	EH-5204	EH-5504	EH-5105	EH-5205	EH-5505
		5304			5305	5605
Maximum load（kN）	10 or less	20	50	100	200	500
		30			300	600
Load accuracy	Better than indicated value ±1%、±0.5%
Displacement and deformation accuracy	Better than indicated value ±1%、±0.5%
Resolution of test parameters	The load and deformation are not graded and the resolution remains unchanged ±1/350000FS (full scale)
Test space（mm）	800	800	800	700	500	500
Effective width（mm）	400	400	560	560	600	650
Motor power （Kw）	0.75	0.75	1	1.5	3	5
Dimensions（mm）	950x460x2050	970x480x2050	1100x600x2050	1080x660x2200	1100x750x2200	1260x700x2550
Main engine weight（Kg）	200	320	500	850	1500	2500
Remarks: The company reserves the right to upgrade the instrument without any notice after the update, please ask for details when consulting.
