Electronic Torsion Testing Machine

It is mainly used for torsion test of various materials such as metal and non-metal, which can realize torque and torsion angle control. With the addition of corresponding accessories, it can also conduct torsion test on parts and components. Under the computer control mode, equipped with a small angle measuring device can accurately obtain test data such as torsional elastic modulus (shear modulus G) and non-proportional stress (TP). The horizontal steel structure is adopted, and the exterior is a high-quality aluminum and high-plastic spray cover. The transmission system adopts reliable components and the operating noise of the transmission system is lower than 60dB. The transmission loading system adopts Japanese Panasonic servo system control. The torque measurement uses a high-precision torque sensor, and the rotation angle measurement uses an imported high-precision photoelectric encoder.

We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.

Please provide the test standard you need to our company, our company will help you customize the test machine that meets the test standard you need.

Send email to us

Product Detail

PARAMETER

Product Tags

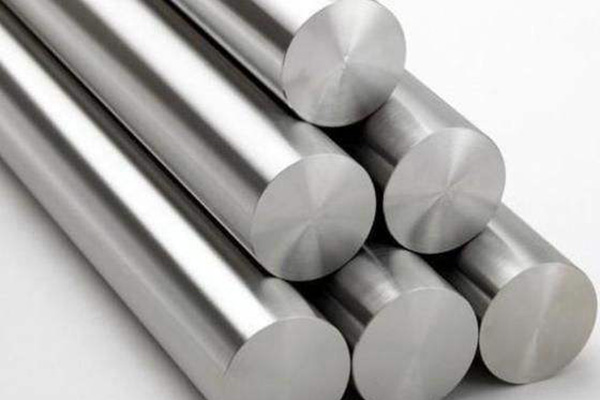

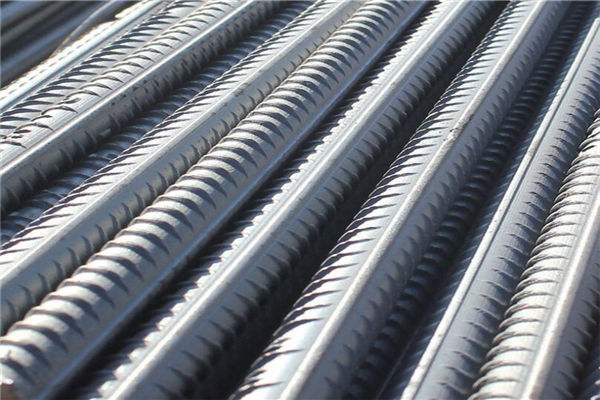

APPLICATION AREA

f8562e8adc36371e528206d11457fa88c21387732181d5-Wzcyk6

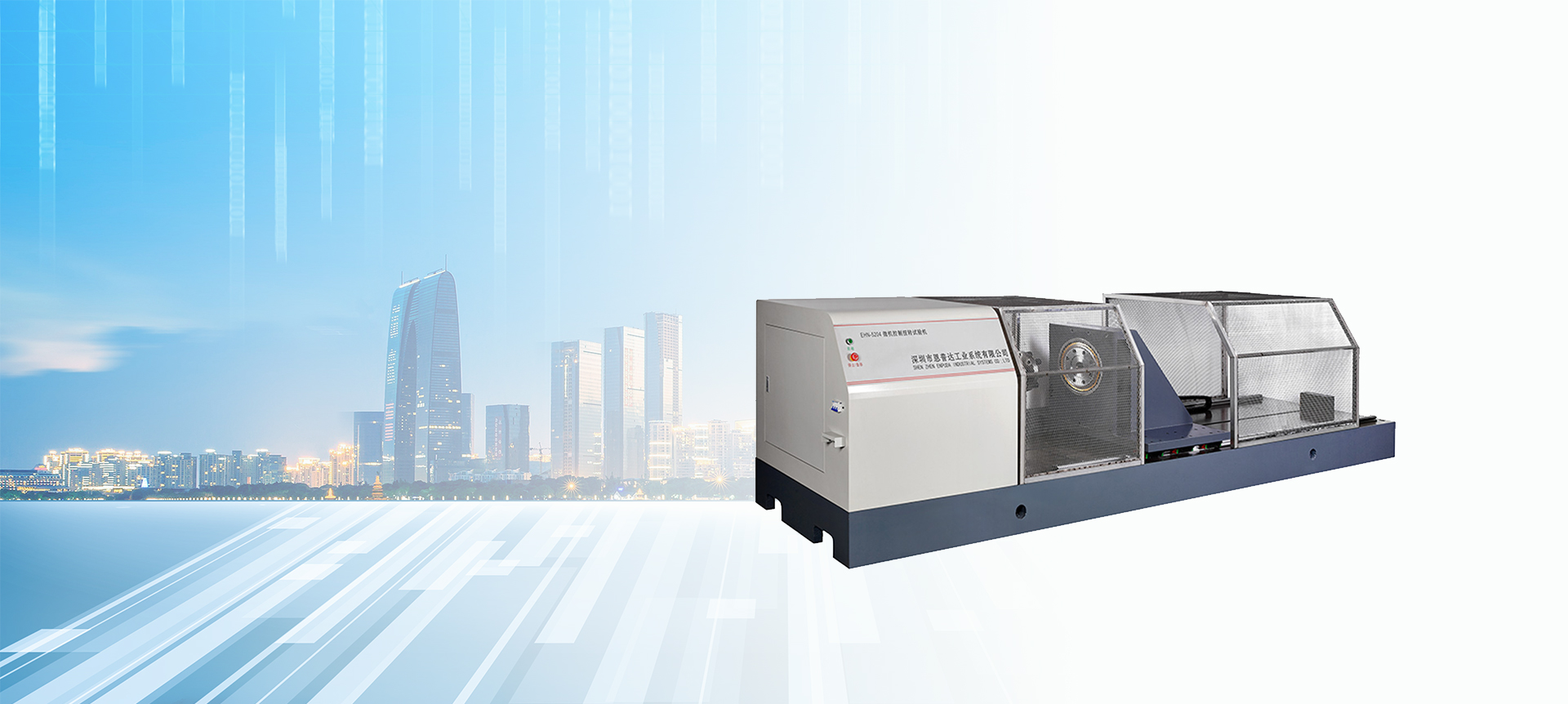

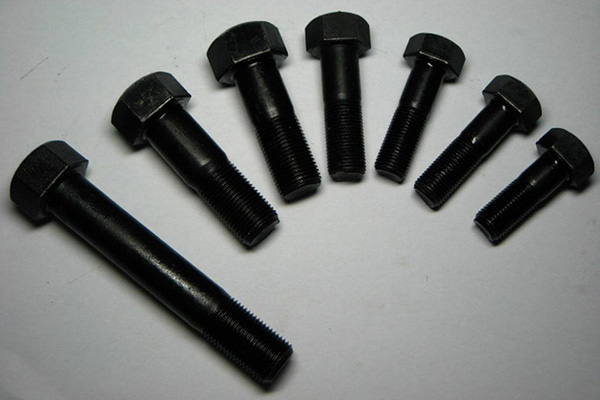

The computer-controlled electronic torsion testing machine is mainly used for torsion testing of metal, non-metallic materials, high-strength bolts and other parts.

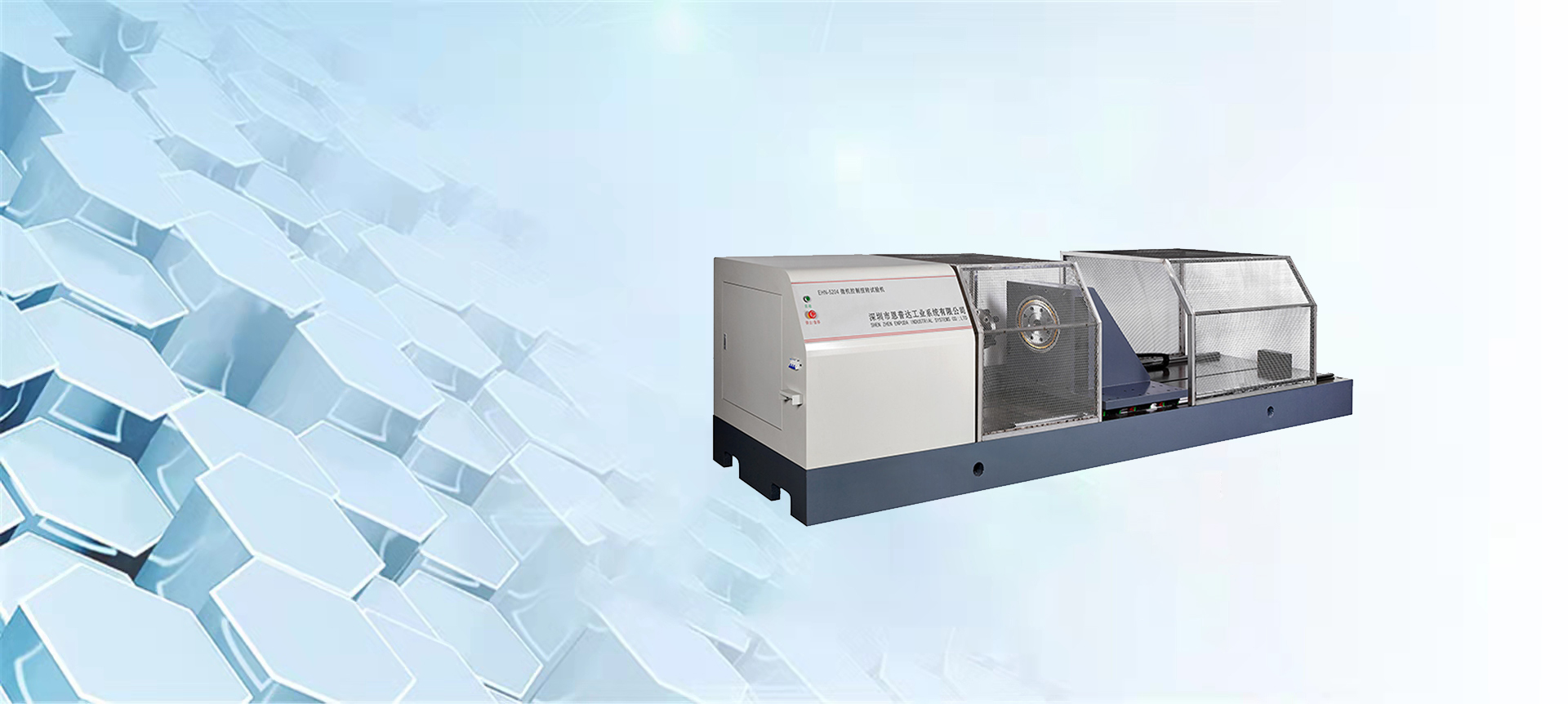

Enpuda microcomputer-controlled electronic torsion testing machine uses a cycloid pinwheel reducer, and the power transmission system is stable and reliable; it is equipped with a torque fine-tuning handwheel, which can adjust the initial torque to zero; the workbench can be moved freely, which can be applied to various Length of the specimen.

The transmission loading system is controlled by the Japanese Panasonic servo system, and the operating noise is less than 60dB; the torque measurement uses a high-precision torque sensor. Using high-precision torque sensor, ±350,000 yards resolution, torque measurement range up to 1-100%

The torsion testing machine software package is pre-installed under the Windows operating system, which can be tested according to various national standards or standards provided by users.

The test machine is an ideal cost-effective test system for scientific research institutes, metallurgical construction, national defense industry, colleges and universities, aerospace, rail transit and other industries.

Customized service / Test standard

We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.

Please provide the test standard you need to our company, our company will help you customize the test machine that meets the test standard you need

Testing standard

Performance features / advantages

1. Independent electronic measurement and control system can also use computer to control, collect, analyze and process test data, and test data and curves are dynamically displayed with the test process. The automatic processing and display of the test data are completed by the microcomputer, and the torque-torsion angle and torque-time curves are drawn, connected to the printer, and the test report that conforms to the national standard such as the test date, serial number, material, torsion, and strength is printed out. Torsional angle automatic tracking measurement and loading speed indication and peak hold functions;

2. Adopt high-precision torque sensor, ±350000 yards resolution, torque measurement range up to 1~100%.

3. With overload protection function.

4. Using cycloidal gear reducer, the power transmission system is stable and reliable;

5. There is a torque fine-tuning handwheel, which can adjust the initial torque to zero;

6. Movable workbench, which can be used for samples of different lengths;

7. Equipped with commercial computers of mainstream brands as controllers to set test parameters, control working conditions, collect data, process and analyze, display and print test results, etc.

8. Pre-installed software package of torsion testing machine under Windows operating system can be used for testing according to national standards or standards provided by users.

Test Standard

Comply with GB/T 9370-1999 "technical conditions of torsion testing machine", GB/T10128-2007 "torsion test method of metal at room temperature" and JJG 269-2006 "verification regulation of torque testing machine" and other standards.

Comply with GB, JIS, ASTM, DIN and other standards.

Previous: Electro hydraulic servo horizontal tensile testing machine

Next: Electronic dynamic testing machine

Model of testing machine	EHN-5201 （5101）	EHN-5501	EHN-5102	EHN-5502	EHN-5103 (5203)	EHN-5503	EHN-5104
Maximum torque（N.m）	20（10）	50	100	500	1000（2000）	5000	10000
Torque accuracy	Better than indicated value ±1%、±0.5%
Torsion angle and deformation accuracy	Better than indicated value ±1%、±0.5%
Speed range（°/min)	0.01～720(It can be extended to 1080）Or non-standard customization
Torque resolution	Torque is not divided into gears and the resolution remains unchanged ±1/300000FS（full range）
Test space（mm）	300、500 Or non-standard customization		500、800		800、1000、1500 Or non-standard customization
Dimensions（mm）	1180×350×530		1500×420×1250		2800×470×1250mm
Total power of main engine（kW）	0.4			0.75	1	3	5
Mainframe weight(KG)	100		120	550	1000	1500	3000
Remarks: The company reserves the right to upgrade the instrument without any notice after the update, please ask for details when consulting.
