Wuhan University of Technology

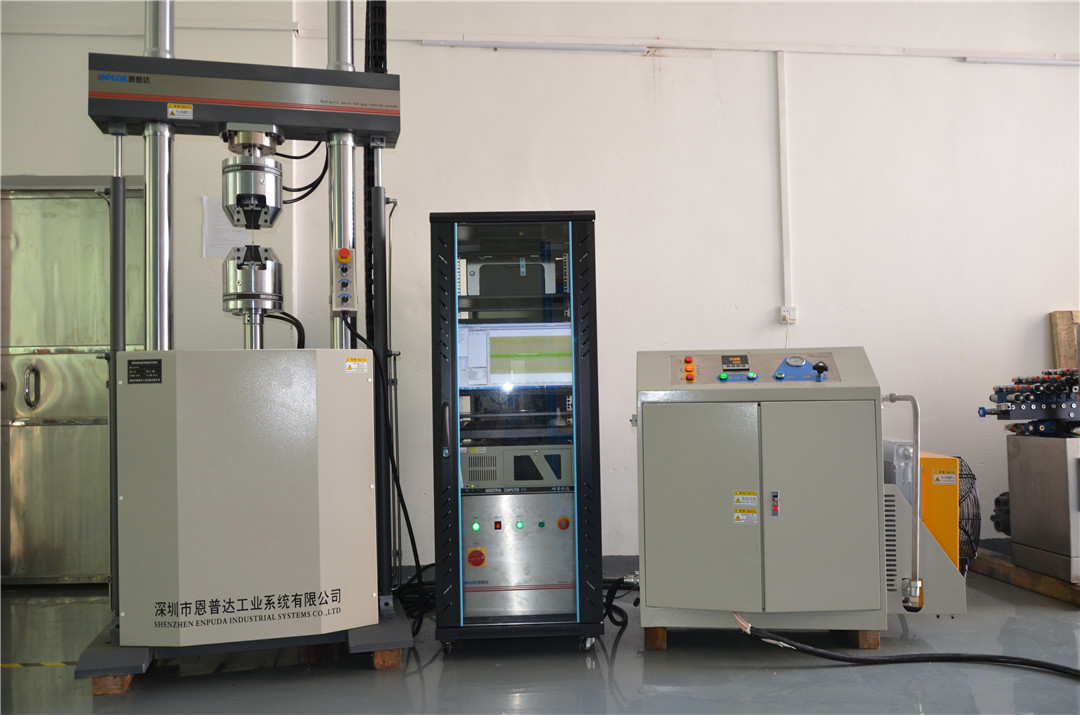

Developed a batch of 100KN electro-hydraulic servo dynamic fatigue testing machine and 20000N.m microcomputer controlled torsion testing machine for Wuhan University of Technology.
Wuhan University of Technology is a national key university jointly established by the Ministry of Education, the Ministry of Transport, and the National Defense Science, Technology and Industry Administration.
The electro-hydraulic servo fatigue testing machine is mainly used to test the dynamic and static mechanical properties of various metals, non-metal materials, composite materials, aerospace, automobiles and parts.
It can perform tensile, compression, bending, low-cycle and high-cycle fatigue tests under sine wave, triangle wave, square wave, trapezoidal wave, random wave, and combined waveform.
The technical parameters of the 100KN electro-hydraulic servo dynamic fatigue testing machine are as follows:
1. Maximum test force: 100kN
2. Load measuring range: 2～100kN
3. Actuator stroke: ±75mm
4. Relative error of static indication: ±0.5%
5. Relative error of dynamic display value: ±1.0%
6. Relative error of static displacement: ±0.5%
7. Relative error of dynamic displacement: ±0.5%
8. Average load fluctuation of test force: ±1%
9. Dynamic load fluctuation of test force: ±2%
10. Test waveforms: sine wave, triangle wave, square wave, trapezoidal wave, random wave, combined waveform, etc.
Post time: Feb-26-2022
